How to Read Floor Plans

By Meg Escott

Learning how to read floor plans is a really worthwhile exercise, whether you're building a new home, remodeling, looking for a house to buy or trying to figure out how the space works in your home.

how to read floor plans

This page forms part of the how to read house plans series.

On this page we'll be covering....

What can a floor plan tell you?

So what can you find out once you know how to read floor plans?

  • You can make judgements about the quality of light in each room.
  • You can imagine what it will be like to live (eg watch TV, make dinner, take a shower) in each of your spaces.
  • You can see how the circulation works, entering, leaving and moving around your home.
  • You can see where the views are – both internal and external to your home.
  • You can see how each of the spaces relates to the other spaces.

Equally as important perhaps is what a floor plan can’t tell you.  You’ll need to look at other drawings (such as elevations and sections) as well to get a full picture of the home.

  • A floor plan can’t tell you the height of the windows or doors.
  • A floor plan can’t tell you how high the ceiling is unless it’s specifically noted down on the floor plan.
  • A floor plan doesn’t contain any information about what finishes are used on the interior or exterior of the home.
  • Floor plans don’t contain sufficient information on their own to be handed to a builder in order to build a home.  They could have a go, but they’d have to make an awful lot of assumptions which may not be what you want in your new home.

What exactly is a floor plan?

A floor plan is a 2-dimensional drawing of a home done to scale.  It’s a tool which allows you to analyze the layout of a home.

The floor plan is a representation of a home as if it’s been cut by a saw at around 4ft above the floor level.

I've heard floor plans described as an X-ray of a home which I think is a great way to think about them.

Floor plans are great for describing the scale and size of the spaces inside the home, how the rooms of the home fit together and the flow between them.

Since you can see the whole of one floor at a time, it makes it a valuable analysis tool because you can spot things that you might not necessarily notice even wandering round a home in real life.

How to read floor plans - essential information

So in order to read floor plans, what information do you need?

First of all, you need a floor plan for each story of the home you're looking at.  For our case study house, we only have one floor to keep things simple.

As well as the layout, a floor plan also needs to include the following information:

Compass mark

The compass mark shows which direction is north.  This is important to know how the sun moves around your home.

how to read floor plans compass markHow to read floor plans - locate the compass mark to determine the orientation of the floor plan

If there isn't a compass mark on the floor plan, you might find it on the site plan.

Dimensions and scale

Look for the dimensions of the rooms of the floor plan. Sometimes there is a scale that you can use to determine the dimensions that aren't explicitly marked.

how to read floor plans dimensionsHow to read floor plans - locate the dimensions or a scale

On the floor plan above, the dimensions are marked with black lines with a diagonal line to mark the extent of each dimension.

Find out more about scale for floor plans.

Furniture

Make sure there is a furniture layout on the plan. You’ll be surprised about how many problems can be uncovered in a floor plan when you bring furniture into the picture as well. The sofa and the dining table as well as the kitchen and bathroom layouts should be on the floor plan.

how to read floor plans furnitureHow to read floor plans - ensure that furniture of a realistic size is on the plan.

Take a moment to check the size of the furniture.  Sometimes the furniture used on a floor plan is small to make the floor plan appear larger.  The furniture will use the same scale as the rest of the floor plan.

Is the sofa on the floor plan really the size of a big comfy sofa or is it heading towards the size of a bus shelter bench? If there is no furniture on the plan, print it out and put some in roughly to scale.

How to read floor plans with dashed lines

Any vertical elements that are cut by the floor plan cut are represented by a solid line. The elements with a dashed line are equally as important to the floor plan.  Anything that hasn’t been cut through by the floor plan cut, or doesn't sit below the cut shows as a dashed line.

This can include elements both above and below the cut.

Things that commonly appear as dashed lines on a floor plan are over counter cabinets in kitchens and wardrobe rails.  Skylight windows will show as a dashed line.  Special ceiling elements such as a coffered ceiling will show as a dashed line on the floor plan.

Floor plan symbols

The next thing to get to grips with is the symbols that are used in a floor plan.  If you haven’t already, please sign up to HPH so that you can download your floor plan symbols and blueprint symbols.  They’re the symbols that are used throughout the HPH site.

Each of the symbols is explained on the floor plan symbols page .

Stepping through the floor plan

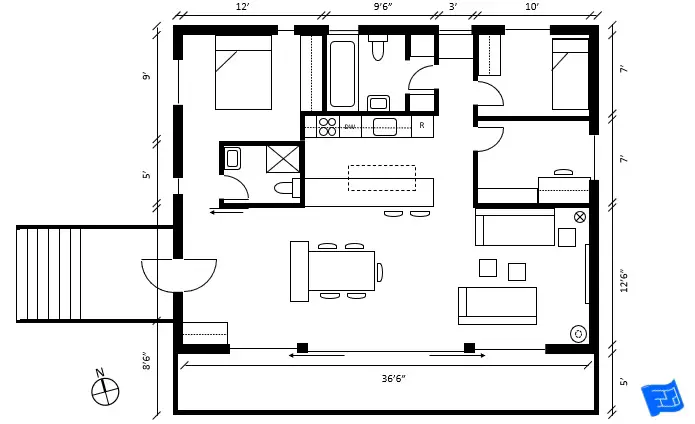

So to help you learn how to read floor plans, let's step through the floor plan of our study house.

Walls

External walls are represented by a thick solid line (they have the heaviest line weight).  The internal walls are represented by a thinner solid line.  Full height doors are represented by an even finer solid line.

Windows

Windows are represented by a single solid line.  The floor plan doesn’t tell you anything about how a window opens, or the height of the window.  You'll need to look at elevations for these details.

how to read floor plans windowsHow to read floor plans - where are the windows?

Doors

Doors are represented by a thin solid line and are always drawn in the open position.

Doors are accompanied by a quarter circle to show the extent of the door swing.  Showing the door swing helps to show any possible conflicts with the swing of the door such as swinging into another door, or swinging into a hallway where someone might open the door into the path of someone walking down the hall – ouch.

That’s why internal doors should open into rooms and not into circulation spaces.

Entries

Identify where the front door and any other entries are.

Stairs

Although there is only one floor on our study house, we do have stairs going up to the front door.

The stairs show each tread.

Stairs between each floor should indicate which way is up or down.  There are different conventions for which way the arrow points, up or down so I like to see a word to explain ‘up’ or ‘down’.

Furniture

You can see the dining room, bedroom and study furniture on the floor plan.

Kitchen layout

You can see the basic layout of the kitchen including the location of appliances.

how to read floor plans kitchen layoutHow to read floor plans - the kitchen layout should be indicated on the floor plan

If the kitchen layout is not indicated, you should have a think about how the kitchen layout might work.

Bathroom layouts

You can see the layout of the bathrooms.

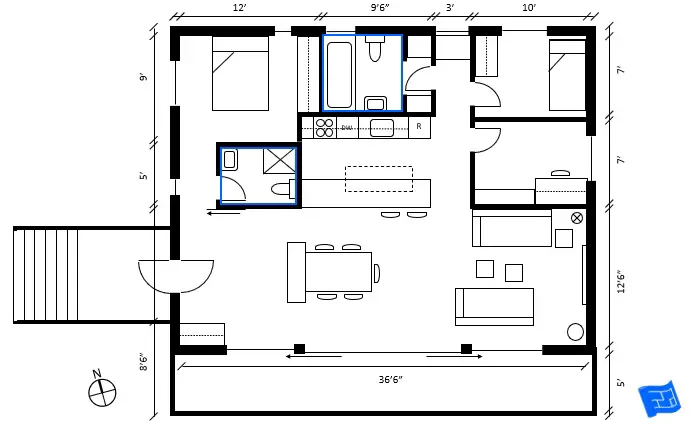

how to read floor plans bathroom layoutHow to read floor plans - the bathroom layout should be indicated on the floor plan

If the bathroom layout is not on the floor plan, put a layout in yourself to make sure the space will work as a bathroom.

There's lots of information available on the design of each individual space, room by room.

Laundry

It's important to have some space set aside for a laundry.

how to read floor plans laundryHow to read floor plans - Can you find the laundry on the floor plan?

Fireplace

Our example home has a stove rather than a fireplace.  The circle with the solid line shows the size of the stove on the ground, the circle with the dotted line shows the chimney going through the roof.

how to read floor plans stoveHow to read floor plans - is there a fireplace or stove on the plan?

Storage

In addition to closets in bedrooms is there any other storage on the floor plan?

how to read floor plans storageHow to read floor plans - apart from bedroom closets find any additional storage on the floor plan

How to read floor plans - variations

Some floor plans use colors which can help sometimes to see the different types of spaces but it’s by no means necessary. Some software can also produce floor plans in 3D – a sort of perspective view, which again can help understanding but the true scale of the rooms is lost so a flat 2D floor plan will always be necessary.

Floor plan analysis

You can read more about how to analyze your floor plan....
